Click here to download our infrastructure node map for use with Google Earth.

Connect Locally:
Somerset and Meshtastic®
Discover the power of mesh networking in Somerset County. Our platform is dedicated to empowering local residents with information and resources for community connectivity.

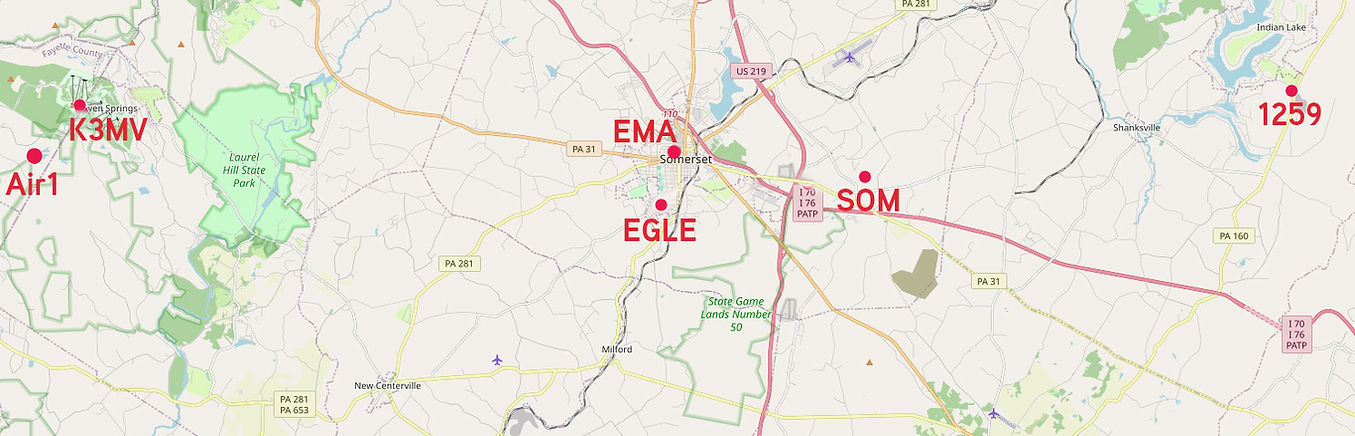

Our Mesh Infrastructure
(Air1) 7Springs - ROUTER
​This node is located at Seven Springs and is the main hub between Somerset County and The Pittsburgh area.
​
(SOM) Somerset East
​Somerset East is located at the Somerset County Technology Center and is a link from Air1 to Somerset
​
(EMA) Somerset
​Somerset is located on the roof of the Somerset County EMA Office
​
(EGLE) Overwatch1
​Located Around the Somerset Area High School, it serves the Southwestern side of Somerset.
​
(1259) Overwatch2
​Overwatch2 is Located on the eastside of Indian Lake and serves parts of Rt 160
​
(K3MV) 7Springs
​Located at Lake Tahoe at Seven Springs, This node adds coverage to most parts of resort and helps into the Somerset Area.
​
More to come as the weather warms.

Visit WPAMesh.com for a complete mesh map of Western Pennsylvania
Understanding Meshtastic®
What is Meshtastic®?
Meshtastic is a way for people to communicate even when cell phone services and the internet don’t work.
It uses small, low-power radios instead of cell towers. These radios talk directly to each other and pass messages along, so information can travel many miles without needing Wi-Fi, cell service, or any company-owned infrastructure.

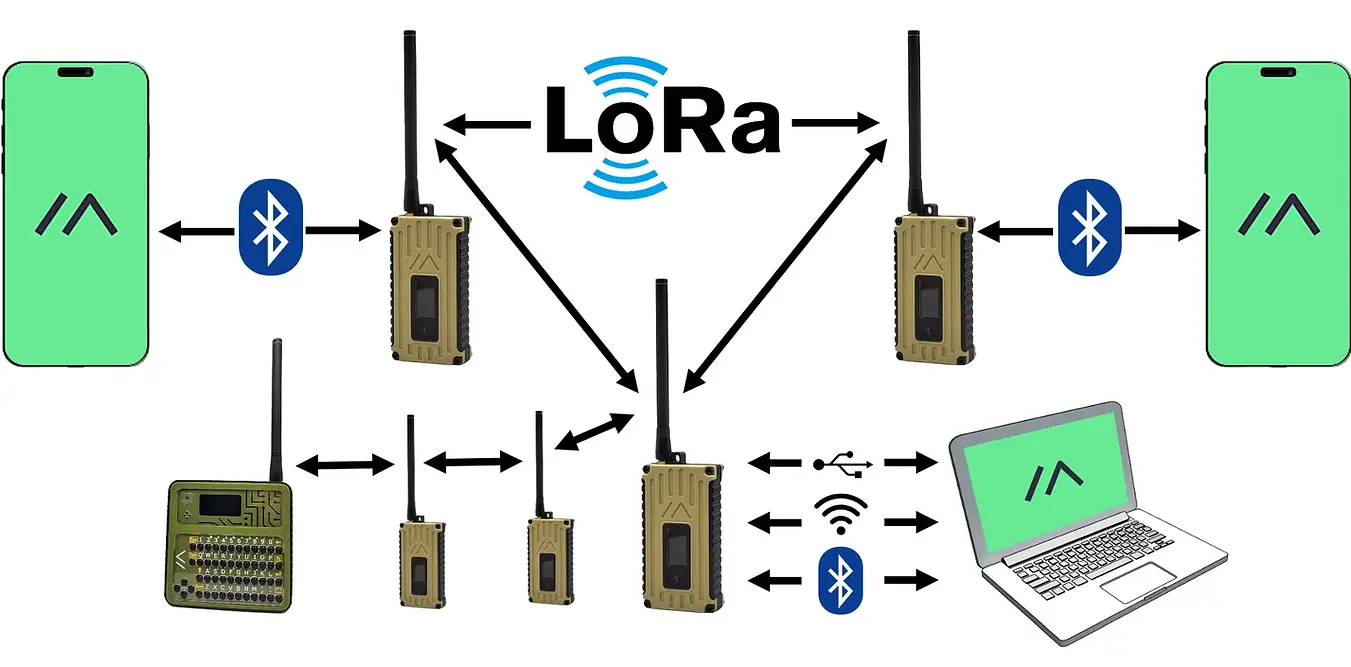

How does it work?
Think of Meshtastic® like a bucket brigade for messages.
Each small device (called a node) can send and receive messages.
If a message can’t reach someone directly, nearby devices automatically pass it along.
The more devices there are, the farther messages can travel.
There’s no central server and nothing to “go down” — the network exists as long as people have devices powered on.
​
Why is it useful?
Works off-grid:
No internet or cell service required. It keeps working during power outages, emergencies, or in remote areas.
Long distance, low power:
Messages can travel several miles at a time while using very little battery. Many devices can run for days or weeks, or even on solar power.
Private and secure:
Messages are encrypted, so only people on the network can read them.
Simple messaging & location sharing:
Users can send text messages and share GPS locations, similar to texting, just without a phone network.
Affordable:
The node hardware is inexpensive and widely available.
To use it, you can use an old smart phone that can run the Meshtastic® app (Android or Apple) and has blue tooth. No cell service needed.
​
Common uses
-
Emergency and disaster communications
-
Rural communities and areas with poor cell coverage
-
Outdoor activities like hiking, hunting, and off-roading
-
Community networks that want local, independent communication
